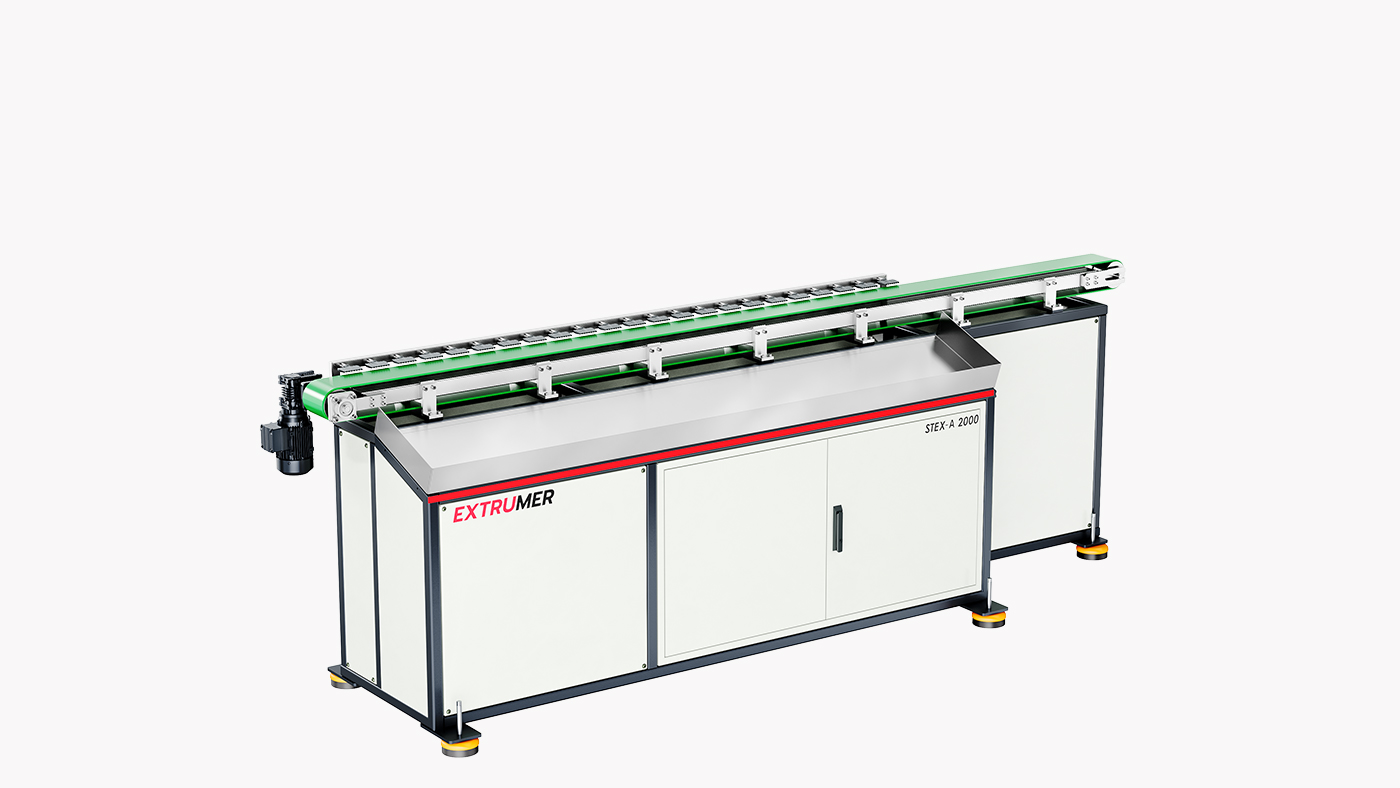

STEX-A STACKING UNIT
STEX-A series conveyor belt stacking units enable the automatic collection and stacking of finished products in extrusion lines after they have been cut to the appropriate dimensions.
STANDARD FEATURES
- Length range of 500 mm – 1500 mm depending on the process.
- Belt conveyor system
- Pneumatic separation equipment
- Inlet and outlet guiding rollers and units
- Safety and protection equipment
- Warning and alert equipment

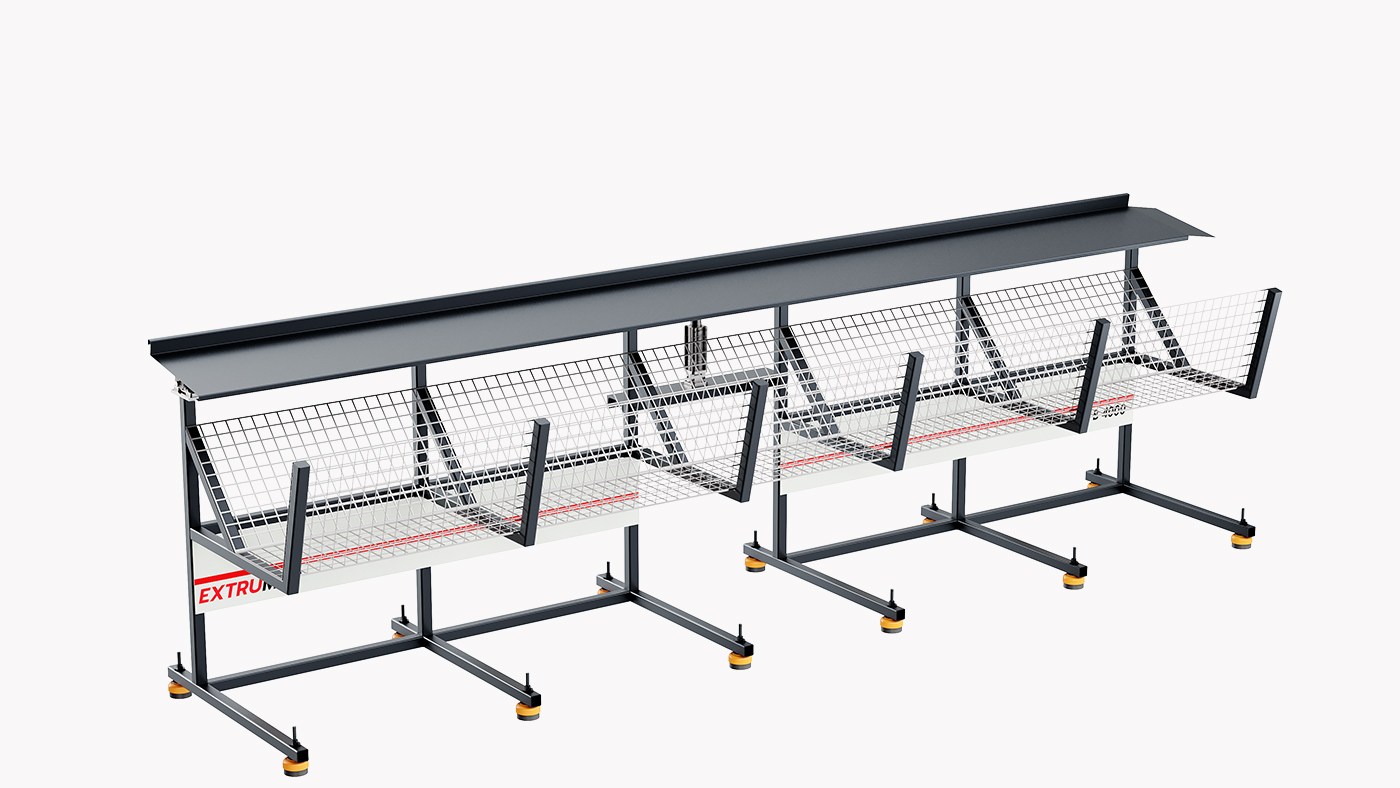

STEX-B STACKING UNIT
STEX-B series stacking units enable the automatic guidance and stacking of finished products (long pipes, profiles, tubes, etc.) from extrusion lines into different hoppers after they have been cut to the appropriate dimensions.
STANDARD FEATURES
- Height range of 1 m – 10 m depending on the process.
- Pneumatic actuator
- Directional units depending on the product.
- Rigid body structure and ease of use.
- Safety and protection equipment
- Warning and alert equipment
